Coarse hypnograms from actigraphy: a worked example with zeitR • hypnoR

library(hypnoR)

The mrpheus-integration article walks through hypnoR’s AASM path end-to-end using mrpheus’s raw automatic PSG staging. Actigraphy-derived staging comes with a different set of things worth checking before you trust the metrics – this picks up that same “check before you interpret” habit, using zeitR’s bundled ActTrust recording instead.

Getting the data in

zeitR ships a real validation recording, input1.txt, used in its own pipeline-parity tests against a Python reference implementation:

result <- zeitR::run_pipeline(
  system.file("extdata", "input1.txt", package = "zeitR"),
  tz    = "UTC",
  quiet = TRUE
)
result

The quiet = TRUE above is deliberate, not just noise-suppression – worth checking what it’s actually quieting rather than reflexively silencing it:

result$issues
#> # A tibble: 5 × 4
#>     row datetime            issue detail
#>   <int> <dttm>              <chr> <chr>
#> 1 10146 2021-06-03 12:50:54 gap   2199 s gap before this epoch
#> 2 20141 2021-06-10 11:43:44 gap   1130 s gap before this epoch
#> 3 30237 2021-06-17 12:01:57 gap   193 s gap before this epoch
#> 4 49255 2021-06-30 17:19:12 gap   1215 s gap before this epoch
#> 5 60894 2021-07-08 19:54:25 gap   2233 s gap before this epoch

A handful of minor timestamp gaps, no backward jumps, no year artefacts. Small gaps like this are common in real wearable recordings (a missed transmission, a brief disconnect) and don’t necessarily invalidate the recording – but it’s worth actually looking at $issues rather than assuming quiet = TRUE means “nothing to see here.”

Into hypnoR

zeitr_hyp  <- zeitR::export_hypnogram(result)
hyp        <- new_hypnogram(zeitr_hyp)
attr(hyp, "resolution")
#> [1] "coarse"
nrow(hyp)
#> [1] 76196

Coarse resolution, auto-detected correctly (no N1/N2/N3/REM labels in the data). nrow(hyp) is likely well beyond one night’s worth of epochs – input1.txt is a multi-day recording, which matters for everything that follows.

A caveat: off-wrist time is folded into “Wake”

zeitR::export_hypnogram()’s stage mapping sends state == 4 (off-wrist) to "W", the same label as genuine wakefulness – there’s no fourth “unknown/off-wrist” category in hypnoR’s 3-state coarse model. That’s a reasonable simplification, not a bug, but it means a recording with substantial off-wrist time will show inflated Wake duration that isn’t really about sleep/wake behaviour at all. Worth checking how much of this recording that actually is:

offwrist_epochs <- sum(result$data$state == 4L)
offwrist_epochs
#> [1] 5542
offwrist_epochs / nrow(result$data)  # proportion of the whole recording
#> [1] 0.07273348

If that proportion is small, it’s a non-issue here. If a given analysis turned up unexpectedly long Wake/WASO on a specific night, this is the first place to check before concluding anything about sleep quality – the device could simply have been off the wrist.

Picking the right night

input1.txt spans several nights (result$nights), so running metrics over the entire multi-day recording would be exactly the kind of mistake covered in the mrpheus article: TST would represent multiple nights’ sleep combined, and SOL would be measured from the very start of the whole file rather than from any single night’s actual bedtime.

result$nights
#> # A tibble: 55 × 11
#>    night is_nap bed_time            get_up_time           tbt   tst  waso   sol
#>    <int> <lgl>  <dttm>              <dttm>              <int> <dbl> <dbl> <int>
#>  1     1 FALSE  2021-05-27 23:42:15 2021-05-28 06:54:15   432   414    18     0
#>  2     2 FALSE  2021-05-28 23:30:15 2021-05-29 07:16:15   466   440    25     0
#>  3     3 FALSE  2021-05-30 09:28:15 2021-05-30 12:58:15   210   197     0     8
#>  4     4 FALSE  2021-05-30 22:18:15 2021-05-31 07:58:15   580   553    27     0
#>  5     5 FALSE  2021-05-31 23:24:15 2021-06-01 07:14:15   470   456    12     0
#>  6     6 FALSE  2021-06-02 00:10:15 2021-06-02 07:19:15   429   406    23     0
#>  7     7 FALSE  2021-06-02 23:05:15 2021-06-03 07:47:15   522   492    30     0
#>  8     8 FALSE  2021-06-04 00:01:54 2021-06-04 08:29:54   508   469    39     0
#>  9     9 FALSE  2021-06-04 23:36:54 2021-06-05 05:20:54   344   321     4     9
#> 10    10 FALSE  2021-06-06 00:34:54 2021-06-06 07:30:54   416   401    15     0
#> # ℹ 45 more rows
#> # ℹ 3 more variables: soi <int>, nw <int>, eff <dbl>

Restrict to one real night using its own bed_time/get_up_time – exactly the lights_off/lights_on window compute_sleep_architecture() and window_hypnogram() expect:

night1 <- result$nights[!result$nights$is_nap, ][1L, ]
night1
#> # A tibble: 1 × 11
#>   night is_nap bed_time            get_up_time           tbt   tst  waso   sol
#>   <int> <lgl>  <dttm>              <dttm>              <int> <dbl> <dbl> <int>
#> 1     1 FALSE  2021-05-27 23:42:15 2021-05-28 06:54:15   432   414    18     0
#> # ℹ 3 more variables: soi <int>, nw <int>, eff <dbl>

hyp_night1 <- window_hypnogram(hyp, lights_off = night1$bed_time, lights_on = night1$get_up_time)
nrow(hyp_night1)
#> [1] 433

Does smoothing matter here the way it did for mrpheus?

The mrpheus article found smoothing genuinely necessary, because mrpheus::stage_epochs() is a raw per-epoch argmax classifier with no continuity constraint. zeitR’s pipeline is different: Crespo (2012)’s sleep-period detection and Cole-Kripke (1992)’s epoch scoring both impose their own temporal structure on the output, rather than staging each epoch independently. Worth checking whether smooth_hypnogram() actually finds anything to do here, rather than assuming the same lesson transfers automatically:

hyp_smooth <- smooth_hypnogram(hyp_night1, method = c("aasm_isolated", "min_run"), min_run_epochs = 4)
mean(hyp_smooth$stage != hyp_smooth$stage_raw)
#> [1] 0.07159353

Whatever that number comes out to, compare it against the mrpheus article’s equivalent check – if it’s much lower here, that’s evidence the two staging sources genuinely differ in how much raw epoch-level noise they produce, not just a coincidence of this particular recording.

Metrics on the properly-windowed night

arch_night1 <- compute_sleep_architecture(hyp_night1)
arch_night1
#> # A tibble: 1 × 14
#>   tst_min tib_min se_pct sol_min waso_min rem_lat_min sws_lat_min pct_n1 pct_n2
#>     <dbl>   <dbl>  <dbl>   <dbl>    <dbl>       <dbl>       <dbl>  <dbl>  <dbl>
#> 1     207    216.   95.6       0        9          NA          NA     NA     NA
#> # ℹ 5 more variables: pct_n3 <dbl>, pct_rem <dbl>, pct_sleep <dbl>,
#> #   pct_quiet_sleep <dbl>, staging_resolution <chr>

trans_night1 <- compute_transitions(hyp_night1)
trans_night1$matrix
#> # A tibble: 3 × 4
#>   from        `Quiet sleep`  Sleep       W
#>   <chr>               <dbl>  <dbl>   <dbl>
#> 1 Quiet sleep         0.953 0.0413 0.00517
#> 2 Sleep               0.519 0.111  0.370
#> 3 W                   0.222 0.389  0.389
trans_night1$fragmentation
#> # A tibble: 1 × 3
#>   n_transitions fragmentation_index wake_transitions
#>           <int>               <dbl>            <int>
#> 1            53               0.123               12

compute_cycles() remains AASM-only regardless of staging source – coarse hypnograms have no REM stage to segment NREM/REM cycles on:

compute_cycles(hyp_night1)
#> Error in `compute_cycles()`:
#> ! `compute_cycles()` requires a full AASM hypnogram.
#> ✖ `hypnogram` has "coarse" resolution (no REM stage), so NREM/REM cycles cannot
#>   be detected.

Both plotting styles

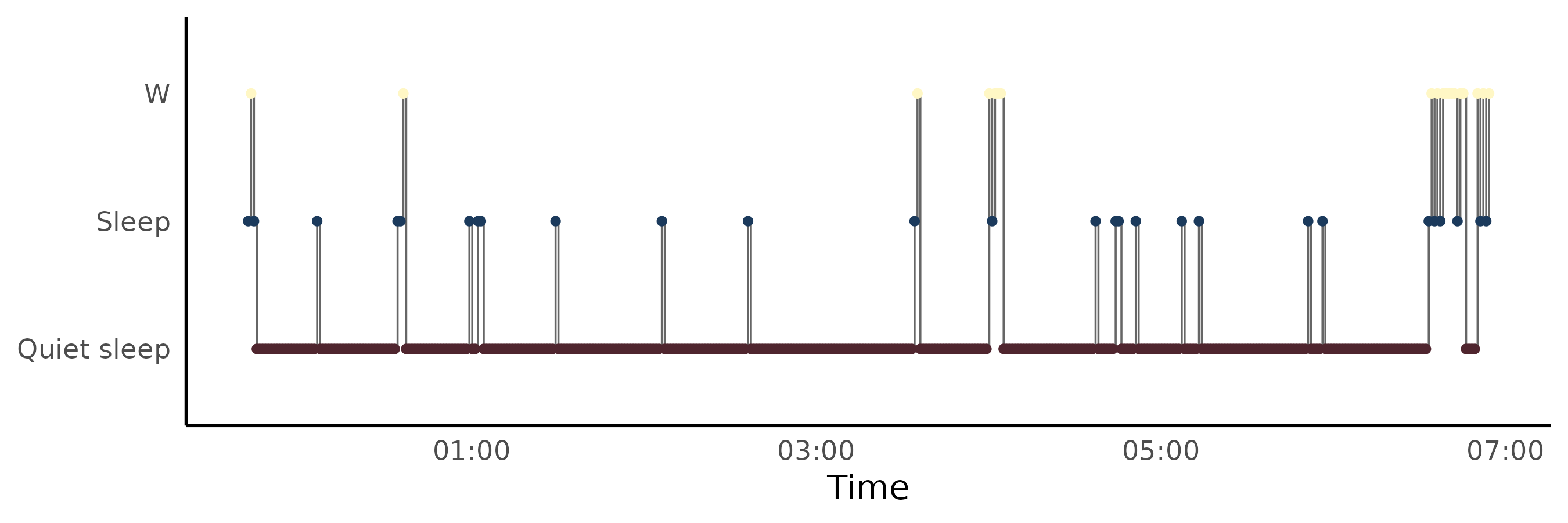

plot_hypnogram(hyp_night1)

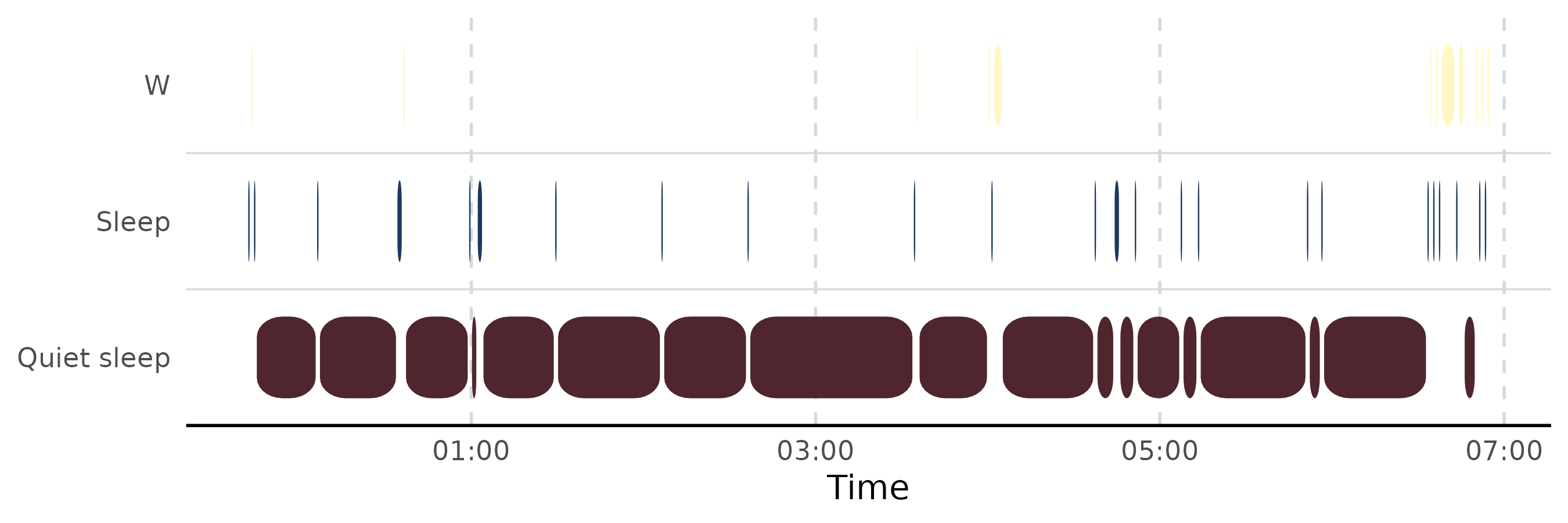

plot_hypnogram(hyp_night1, style = "capsule")

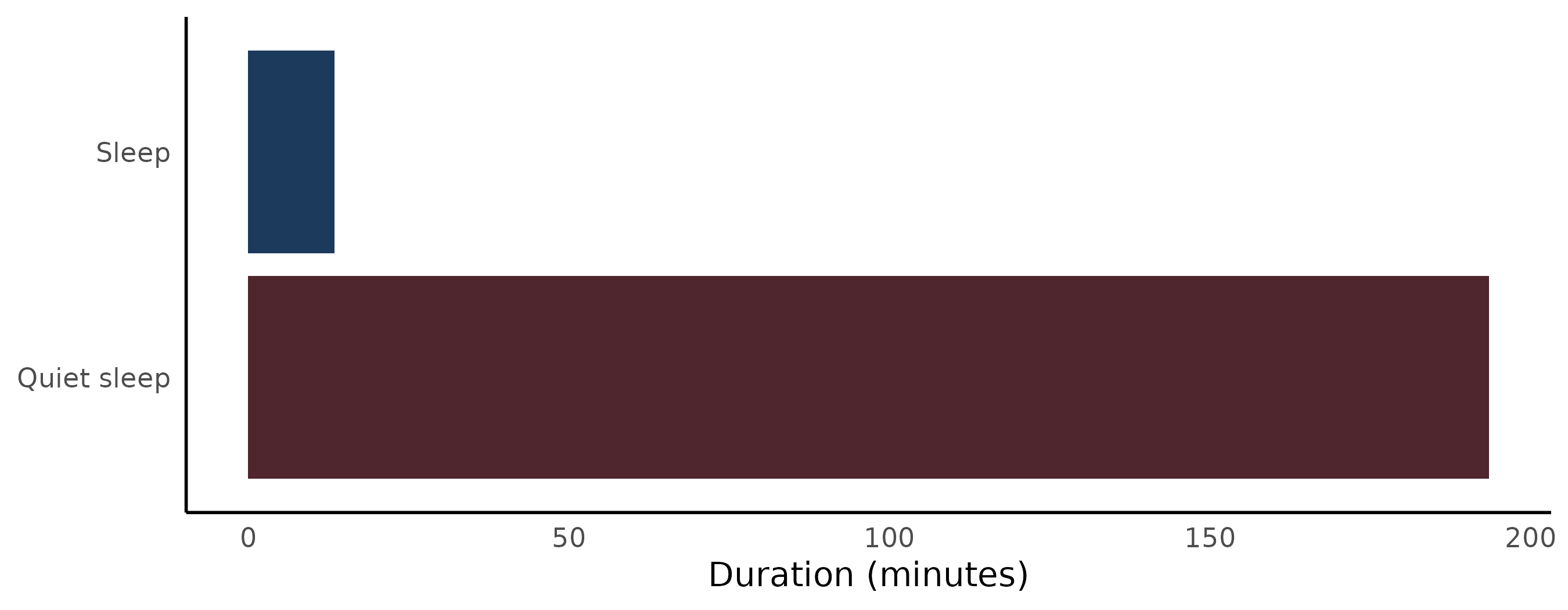

plot_architecture(arch_night1)

Main sleep vs naps, if there are any

result$nights$is_nap distinguishes zeitR’s main sleep periods from secondary (nap) periods. Worth checking whether this recording has any naps at all before assuming a single “the sleep period” exists per day:

table(result$nights$is_nap)
#>
#> FALSE
#>    55

If there are naps present, comparing their architecture against a main night (rather than pooling them together) avoids quietly averaging two physiologically different kinds of sleep opportunity into one number.

Takeaways

Actigraphy-derived hypnograms carry different caveats than automatic PSG staging does – off-wrist time masquerading as Wake is the zeitR-specific one to check, the way scattered low-confidence REM was the mrpheus-specific one.
quiet = TRUE (or any warning-suppression argument) is worth checking what it’s actually suppressing, not just trusting it silently.
Windowing to the real analysis period matters regardless of staging source – a multi-night actigraphy recording needs the same care a multi-hour ambulatory PSG recording does.
Smoothing’s necessity is a property of the staging source, not a universal step to always apply – checking whether it changes anything is more honest than assuming a lesson from one pipeline transfers unchanged to another.
compute_cycles()’s AASM-only requirement is a genuine constraint of what coarse staging can support, not an arbitrary limitation – there’s no REM stage in a 3-state model to segment cycles on.
